The C3001 Data Concentrator Unit adopts Linux Operating System and AMRCPUIMX6ULL (Cortex-A7), it handles two-way communication between the Head-End System (HES) and the Smart Meters.
It has excellent electromagnetic compatibility, could withstand high voltage peak impulse, strong magnetic field, strong static electricity, lightning surge interference, and has strong temperature adaptability range.
Wide voltage range design leads to higher reliability. It supports local/remote modification of the device parameters conveniently, and local/remote software upgrading. Large capacity FLASH memory chip ensures the convenient store of varieties of data.
C3001 Data Concentrator Unit is equipped with various communication method, it is capable to contact the utility master station through 3G/4G/GPRS/CDMA, or Ethernet, acting a critical role in the AMR/AMI smart metering system.
The data concentrator also features data statistics, phase statistics functions, greatly benefits the utilities in improving meter reading efficiency.
Robust Data Acquisition
Harmonic Distortion Analysis
Harmonic Ratio Analysis
Intelligent Event Detection
Intelligent Data Recording
Event Reporting Analysis
Linux Operation System
Frequency Sync Technology
Uplink Comm via 3G/4G/CDMA/Ethernet
Downlink Comm via PLC/RF/RS485
Real Time Data Tracking
Improved FLASH Memory Chip
Transformer & Phase Identification
Power Loss Analysis
Highly Reliable Performance
Technical Data
Operation Temperature | -40°C to +85°C |
Power Supply | 3 x 230 / 400 V ; 3 x 57.7 / 100 V |
Accuracy | Active: 0.5 ; Reactive: 1.0 |
Current | 1.5 (6) A |
Power Consumption | ≤10 W, 15 VA |
Communication | 3G / 4G / GPRS / CDMA, PLC, Pluggable Communication Modules ; Ethernet, RS232 / RS485, Infrared Communication Port. |
Communication Protocol | TCP / IP Server / Client Mode |
Starting Time | <5 sec |
Service Life | >10 years |
Humidity | ≤100% |

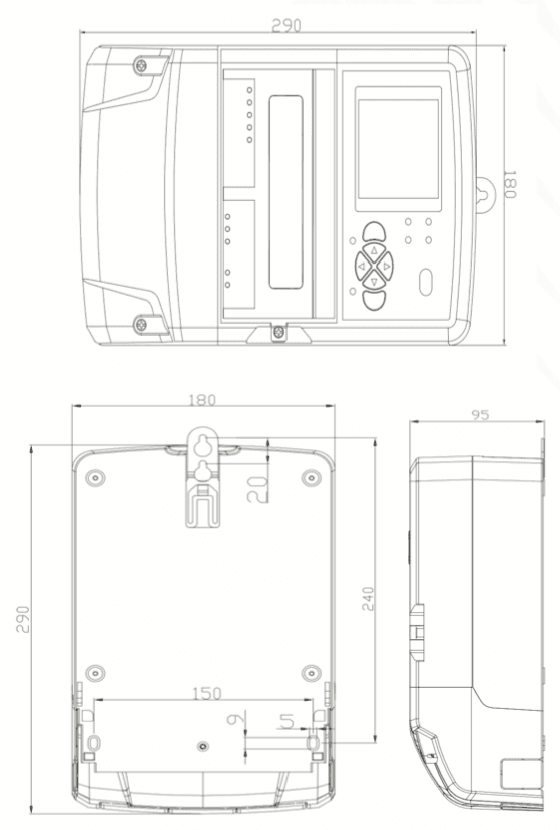

Dimensions | 290 mm (L) x 180 mm (W) x 95 mm (D) |
